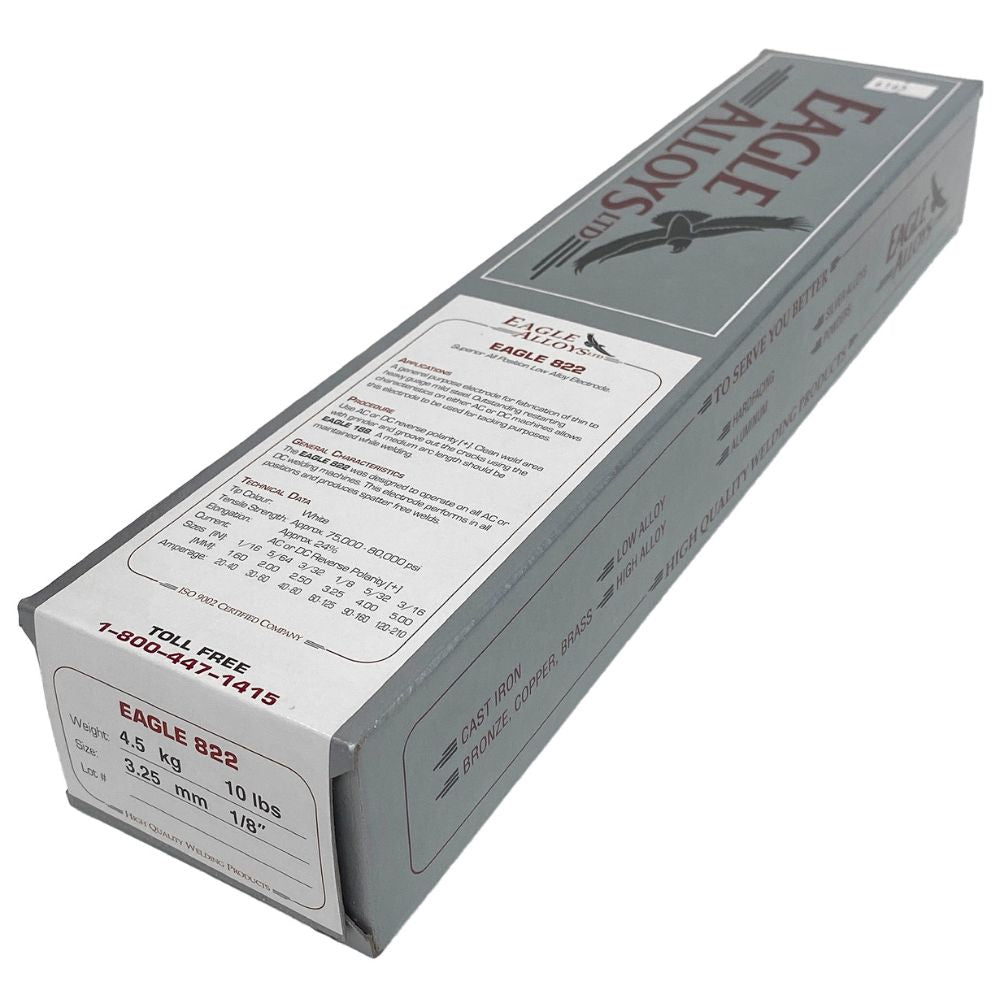

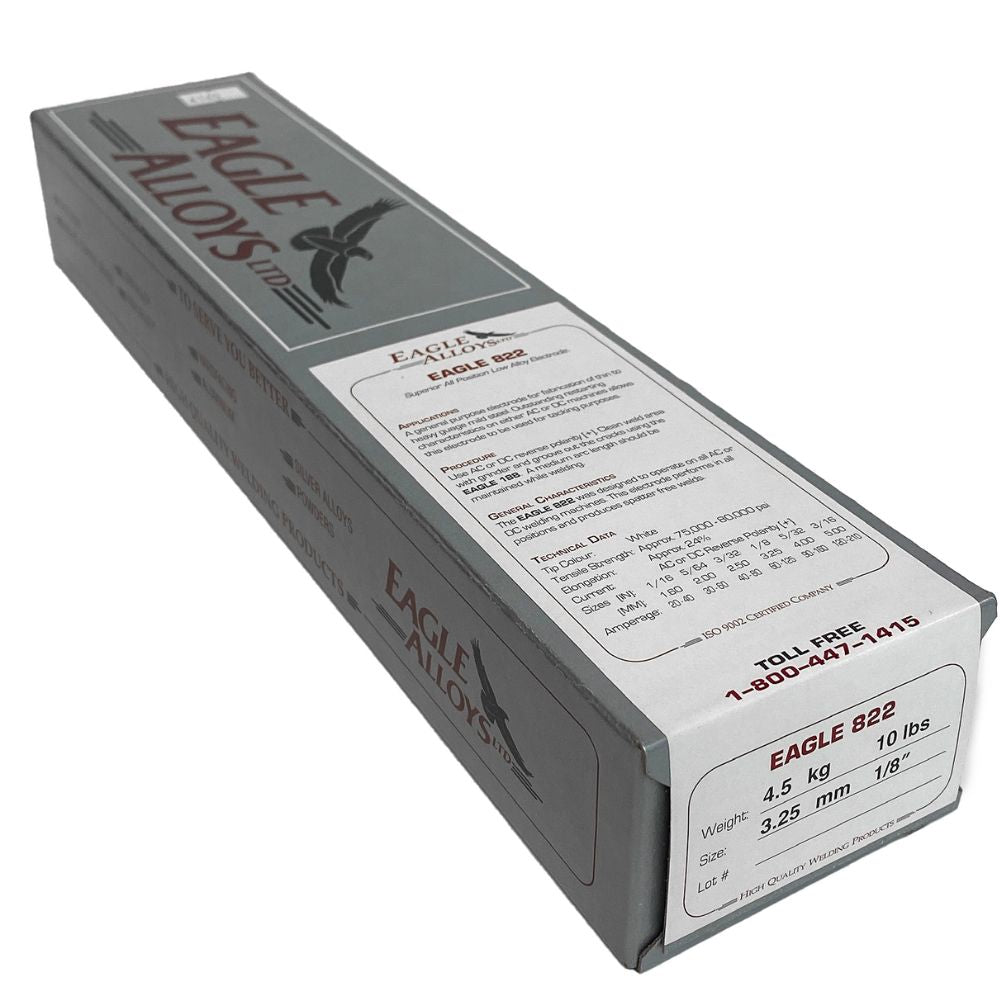

Name: Eagle Farmer Welding Rod (822)
Brand: Eagle Alloys Welding
SKU: EA_822_2_10
Price: 255.0 USD
Availability: OutOfStock

Diameter 5/64

1/16 5/64 3/32 1/8 5/32 3/16

Size

Description Description

Superior All Position Low Alloy Electrode For Maintenance Work

Eagle 822 Specification Sheet | French

Eagle 822 Safety Data Sheet SDS

APPLICATIONS APPLICATIONS

A general purpose electrode for fabrication of thin to heavy gauge mild steel. Outstanding restarting characteristics on either AC or DC machines allows this electrode to be used for tracking purposes.

PROCEDURE PROCEDURE

Use DC Straight [–] Polarity. Clean weld areas with a grinder and groove out the cracks using the Eagle 188. A medium arc length should be maintained while welding.

GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS

The Eagle 822 was designed to operate on all AC or DC welding machines. This electrode performs well in all positions and produces spatter free welds.

TECHNICAL DATA TECHNICAL DATA

Tip Colour: White

Tensile Strength: Approx. 75,000 psi

Elongation: Approx. 24%

WELDING PARAMETERS WELDING PARAMETERS

Current: AC or DC Straight [–] Polarity
Sizes: Inches 1/16, 5/6, 3/32, 1/8, 5/32, 3/16
mm: 1.60, 2.00, 2.50, 3.25, 3.35, 4.00, 5.00
Amperage: 20-40, 40-60, 60-80, 90-120, 150-160, 160-220
