EAGLE 636 Ultra Superior Hardfacing Electrode For Moderate Impact And Severe Abrasion

EAGLE 636 Ultra Superior Hardfacing Electrode For Moderate Impact And Severe Abrasion PDF

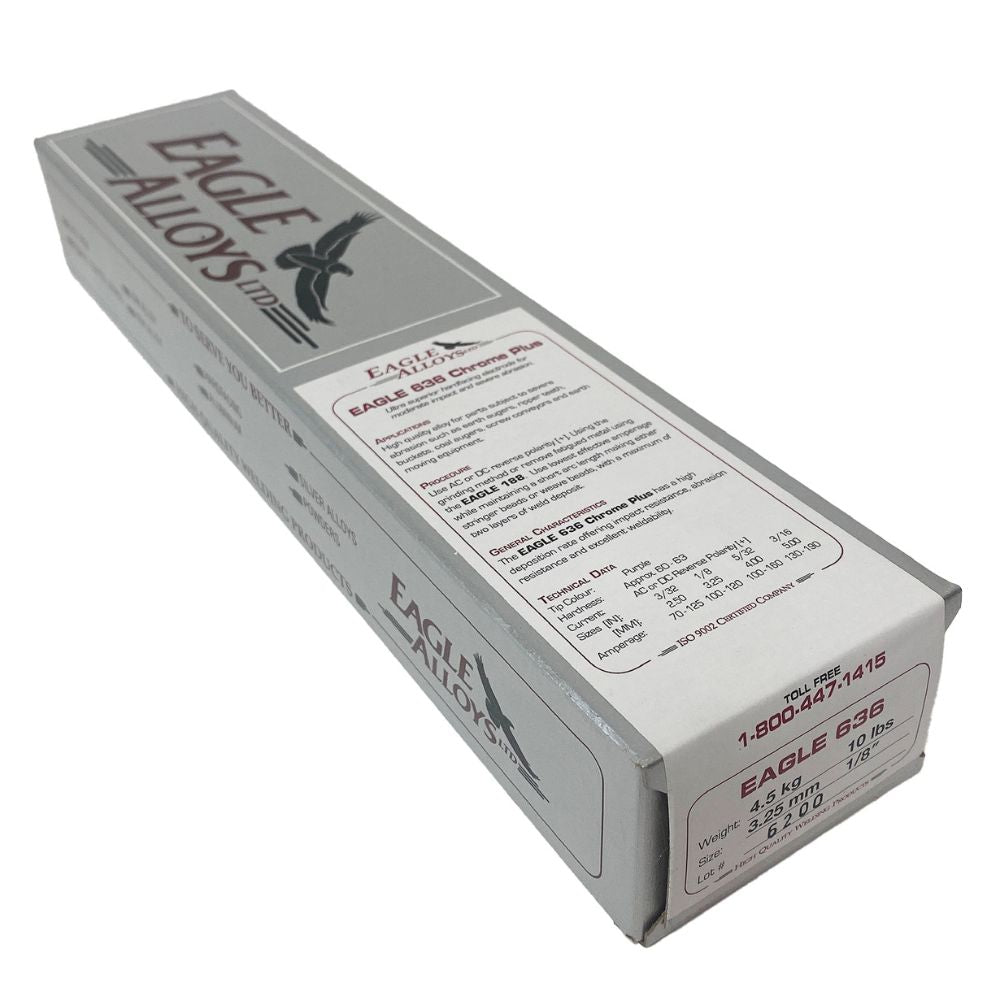

Eagle 636

Name: Eagle 636
Brand: Eagle Alloys Welding
SKU: 636_3.25_1
Price: 64.4 CAD
Availability: InStock

$64.40 CAD

Diameter 1/8"

1/8" 5/32" 3/16"

Size

Free Shipping within Canada

Description Description

Ultra Superior Hardfacing Electrode For Moderate Impact And Severe Abrasion

Eagle 636 Specification Sheet

Eagle 636 Safety Data Sheet SDS

APPLICATIONS APPLICATIONS

High quality alloy for parts subject to severe abrasion such as earth augers, bucket teeth, buckets, bucket lips, mixer paddles, ripper teeth, screw conveyors, compactors, mill hammers, sides of scrapers and mining equipment.

PROCEDURE PROCEDURE

Use AC or DC Reverse [+] Polarity. Use the grinding method or remove fatigued metal using the Eagle 188.
Use lowest effective amperage while maintaining a short arc length making either stringer beads or weave beads with a maximum of two layers of weld deposit.

GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS

The Eagle 636 Chrome Plus has a high deposition rate offering impact resistance and has excellent weldability.

TECHNICAL DATA TECHNICAL DATA

Tip Colour: Purple

Hardness: (RC) Approx. 60 - 63

WELDING PARAMETERS WELDING PARAMETERS

Current: AC or DC Reverse [+] Polarity
Sizes: Inches 1/8 5/32 3/16
mm 3.25 4.00 5.00
Amperage: 70 - 125 100 - 120 130 - 160
